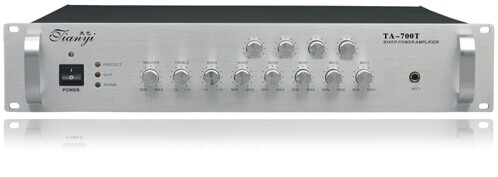

The public broadcasting system
Function characteristics:
S small PA system, the optimal ratio of the ideal choice
S four independent output volume partition
S treble/bass control, the total volume and the volume of the independent control
S 2 road mic input, 3 line road input, 1 road aux output
S phone 1 with the highest priority mute function, inhibit other input signal automatically
S with output short-circuit, overload, overheating, etc protection and warning function
S constant voltage 70 v, 100 v output, and 4 ~ 16 Ω resistance output, with 100 v output four partitions
S just single machine is a complete small public broadcasting system
The performance parameters:
|
Model |
TA-120T |
TA-180T |
TA260T |
TA-360T |
TA-500T |
TA-700T |
TA-860T |
|
The output power |
120W |
180W |
260W |
360W |
500W |
700W |
860W |
|
The input sensitivity |
Line: 250mV Mic: 2mV |
||||||
|
Signal to noise ratio |
Line-85db Mic>70db |
||||||
|
The output |
70V、100V或4~8ohm |
||||||
|
frequency |
100HZ-18KHZ |
||||||
|
The distortion degree of |
<1% |
||||||
|
Installation dimensions |
485×90×410mm(W×H×D) |
||||||
